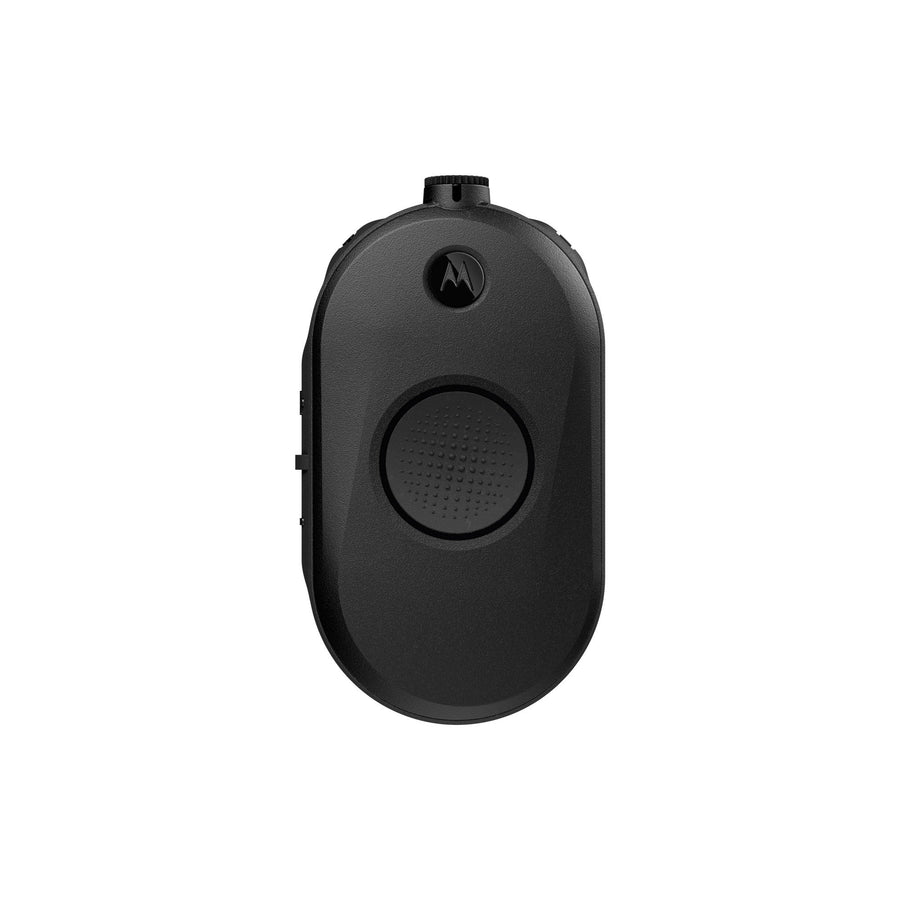

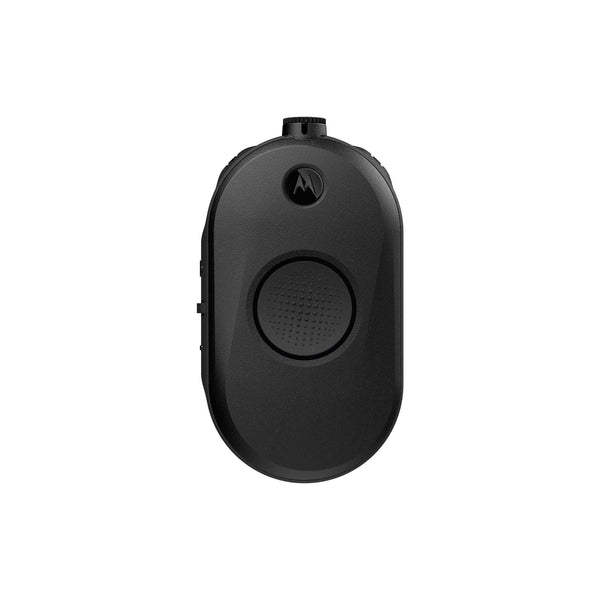

Motorola CLP1013e Manuals and Support

Find Motorola CLP1013e documentation, setup guidance and the Canadian buying page in one place.

Shop Motorola CLP1013e in Canada

What do you need help with?

Start setup →Configure the radio →Find a document →Fix a problem →

Quick start

With the radio off, connect and lock the approved wired audio accessory. Follow the battery and charging instructions in the CLPe manual before first use.
Hold the Power and Battery button until the start-up tone sounds and the Smart Status Glow Ring lights. Keep the earpiece volume low before fitting it.
The CLP1013e is the single-channel model. Confirm its programmed configuration matches your team before a test call.
Hold PTT on the radio or the inline PTT accessory, speak into the accessory microphone, then release PTT to listen through the earpiece.

Source: Motorola CLP1013e user guide. See 17–23, 33–38.

Programming and fleet setup

Identify the exact model and selected configuration. If you are expanding a fleet, send the current model numbers and programming details to our team so compatibility can be checked before you order.

CLPe fleet setup must match the exact model and regional configuration. Before cloning, confirm that the radios share the same frequency band, region and transmit-power specification; do not copy a US channel table into a Canadian radio.

Ask the Canadian team about setup

Documents

Troubleshooting

There is no sound in the earpiece

Turn the radio off and confirm that the wired audio plug is fully inserted and turned to its locked position. Turn the radio on and check the audio at a low volume.

The glow ring changes after the earpiece is removed

The CLPe reports a missing audio accessory through its glow ring. Reconnect the approved accessory using the procedure in the manual.

Cloning fails

Check battery charge, charger contacts and the cloning connection. Confirm both radios are suitable for the same regional configuration before repeating the process.

Frequently asked questions

How do I connect an earpiece to the Motorola CLP1013e?

Turn the Motorola CLP1013e off. Insert the approved audio plug in the unlocked orientation, then turn it until the lock icon faces the front and the indicators align.

How do I talk on a CLPe radio?

Hold PTT on the radio or the inline PTT on the approved wired accessory, then speak into the accessory microphone. Release PTT to listen through the earpiece.

Can I clone any CLP radio into a Canadian CLPe?

No. Motorola requires compatible radios with matching frequency band, region and transmit-power specification for cloning. Confirm the exact models and configuration with the Canadian support team.

Compatible accessories

Use the accessories linked from the Canadian product page. Confirm the radio model, connector and battery or charger part number before adding equipment to an existing system.
