Canadian model support

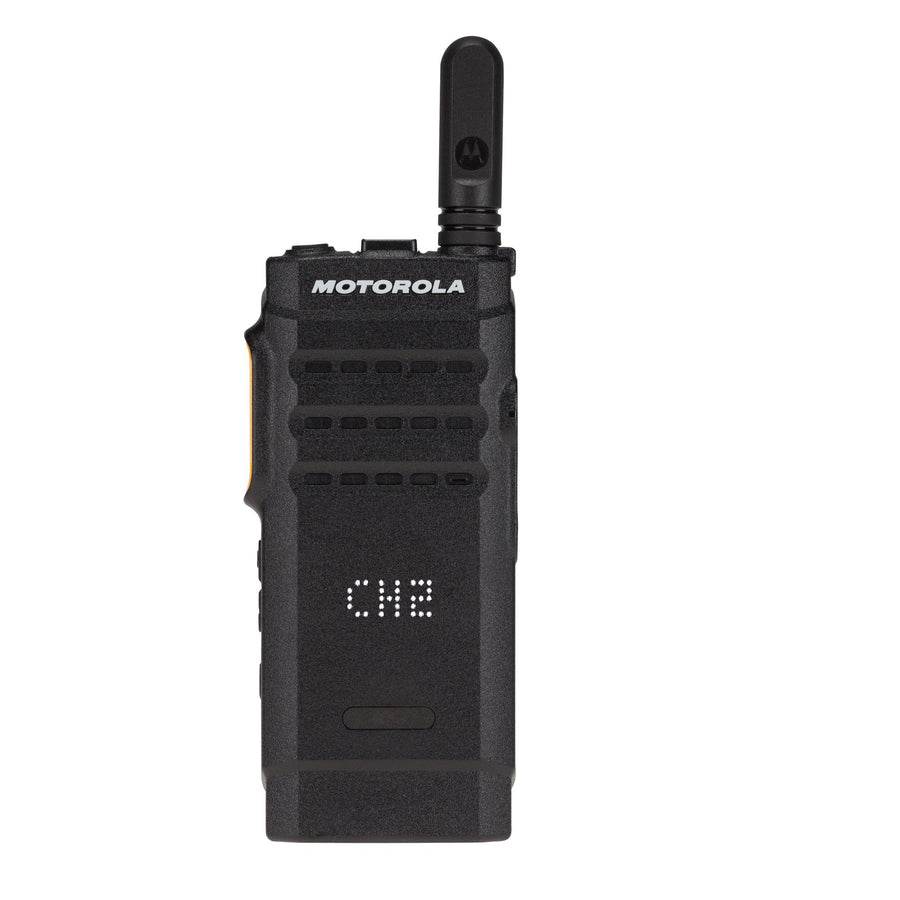

Motorola SL300 Display Manuals and Support

Find Motorola SL300 Display documentation, setup guidance and the Canadian buying page in one place.

Shop Motorola SL300 Display in Canada

What do you need help with?

Start setup →Configure the radio →Find a document →Fix a problem →

Quick start

With the radio off, check that the correct battery and antenna are fitted. Charge using the authorized equipment and the instructions in the matching user guide.
Hold the On/Off/Information button to start the radio. Adjust listening volume with the separate Volume Up and Volume Down buttons.
Use the Channel Rocker to choose the programmed channel, and confirm the channel on the display.
Press and hold PTT. Wait for the Talk Permit Tone if enabled, speak clearly into the microphone, then release PTT to listen.

Source: Motorola SL300 Display user guide. See 18–25, 28–34.

Programming and fleet setup

Identify the exact model and selected configuration. If you are expanding a fleet, send the current model numbers and programming details to our team so compatibility can be checked before you order.

SL300 channels can be configured for the intended analog or digital system. Have your radio administrator confirm the programmed channel, group and side-button assignment; the display and non-display versions use different user guides.

Ask the Canadian team about setup

Documents

Troubleshooting

The SL300 will not start

Check that the battery is charged and properly attached. If the On/Off/Information button still does not start the radio, contact support.

The volume will not go completely silent

A programmed minimum volume can prevent further reduction. Ask the radio administrator whether a minimum volume has been set.

The SL300 is on but group calls are missing

Confirm the selected channel and group configuration. Receiving a group call requires the SL300 to be configured as part of that group.

Frequently asked questions

How do I turn on the Motorola SL300 Display?

Press and hold the On/Off/Information button on the Motorola SL300 Display. Use the separate Volume Up and Volume Down buttons to adjust listening volume.

Why can I not turn my SL300 volume all the way down?

The SL300 can be programmed with a minimum volume level. Ask your radio administrator to confirm that setting before treating the volume control as faulty.

Which SL300 manual should I use?

Use the LED Display user guide linked on this page for the Motorola SL300 Display. The two SL300 versions have different controls and operating instructions.

Compatible accessories

Use the accessories linked from the Canadian product page. Confirm the radio model, connector and battery or charger part number before adding equipment to an existing system.

Shop Motorola SL300 Display accessories
