Includes:
- (1) - Motorola MOTOTRBO SLR 5700 UHF or VHF Repeater
- Mounting Hardware
- (1) - AC Cable
- (1) - Quick Start Guide
- (1) - 2 Year Warranty
-

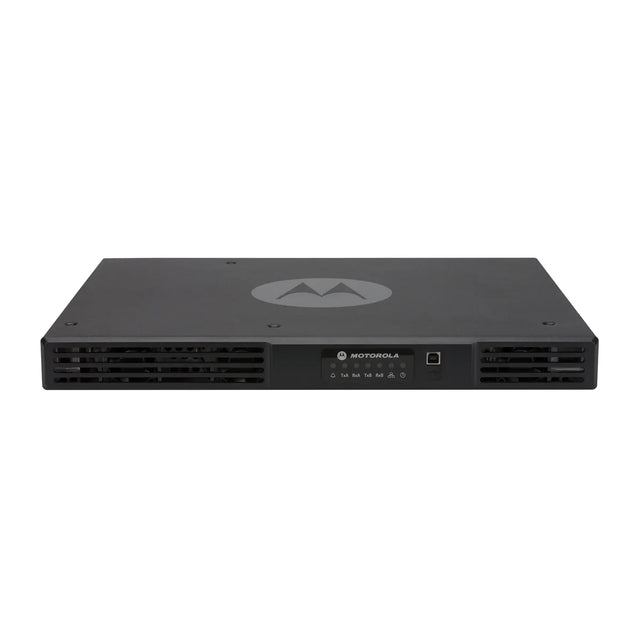

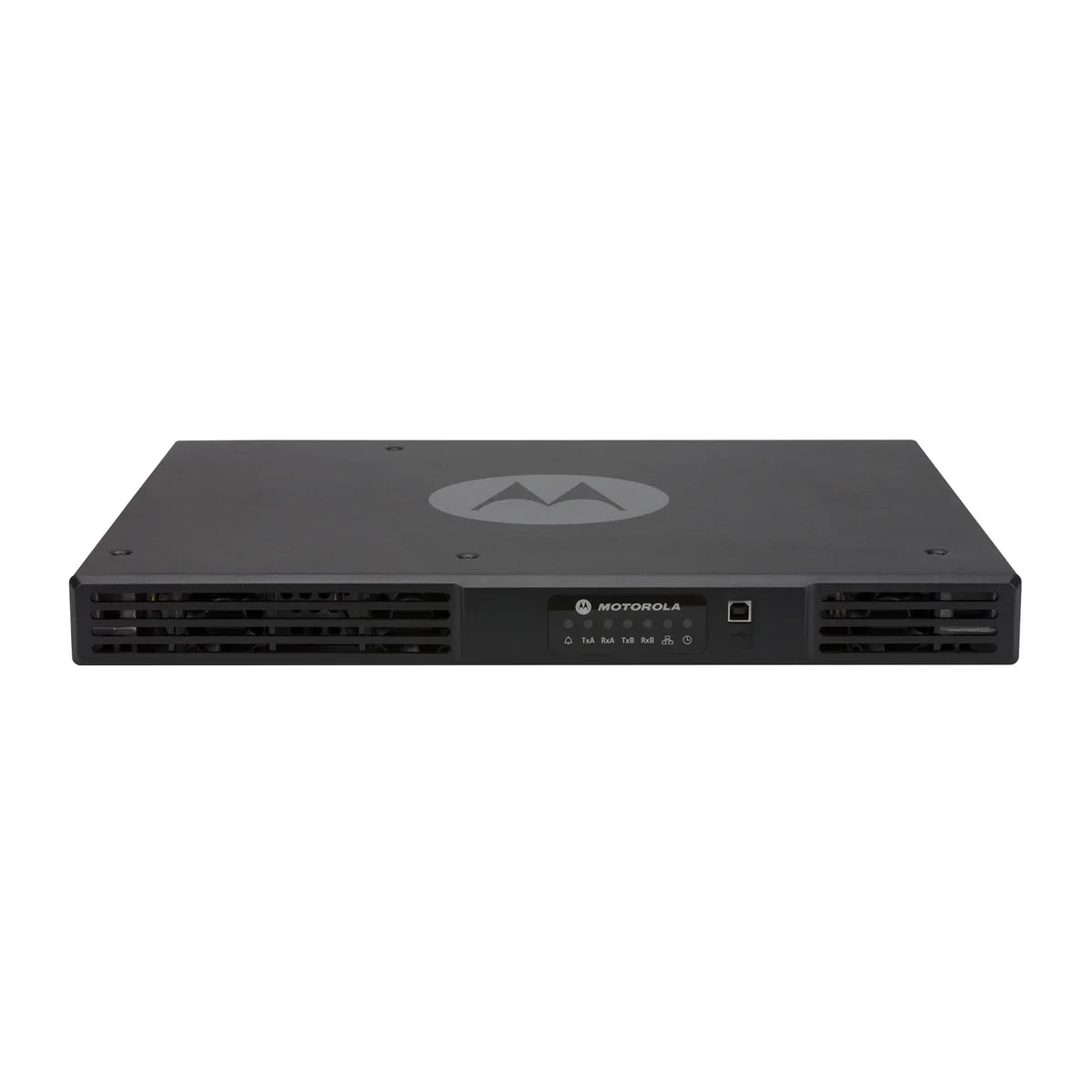

NEXT GENERATION MOTOTRBO REPEATER
The SLR 5000 Series represents a huge leap forward in design and technology. Based on a wealth of field experience, customer feedback and technological innovation, the product delivers outstanding performance and efficiency for your business two-way radio system. From rock-solid reliability to clever touches like an integrated battery charger, the SLR 5000 Series is truly the next generation in repeaters.
HIGH PERFORMANCE
The SLR 5000 Series is designed to offer round-the-clock reliable operation, even at its continuous full transmit power of 50W. The high-quality design has been validated through Motorola’s Accelerated Life Testing (ALT) program, and meets stringent quality criteria. To deliver reliable coverage throughout your premises, the product has a next-generation receiver design, with high sensitivity and improved noise blocking. Combined with the 50W transmit output power and digital error correction, this gives you clear voice quality, even in the most adverse conditions.
The SLR 5000 Series supports the full MOTOTRBO feature set, and is compatible with all the MOTOTRBO system architectures: single site conventional, IP Site Connect, Capacity Plus (single and multi-site), Capacity Max and Connect Plus. The IP interface allows you to build applications and consoles directly into your system.
Learn more about MOTOTRBO™ technology
To help you build your system for top performance, MOTOTRBO RF Planning and IP Integration Services are available for purchase.
HIGH EFFICIENCY
The latest RF technology gives the SLR 5000 Series exceptionally good power efficiency. Together with its space-efficient 1U height and low thermal footprint, it gives you a very low cost of ownership.
The product has simple servicing requirements, with field-replaceable Power Amplifier, Power Supply and Modem modules. A front panel USB port allows easy configuration, with optional support for remote management. It also has built-in features such as a 3A battery charger, external alarm ports and an auxiliary power output to ease site installation.
DESIGNED FOR THE FUTURE
The SLR 5000 Series is designed with the future in mind. Compared to first generation repeaters, it has 10x more processing power, 15x more memory and 125x more data storage. The architecture even has provision for expansion modules, should more functionality be required in the future.

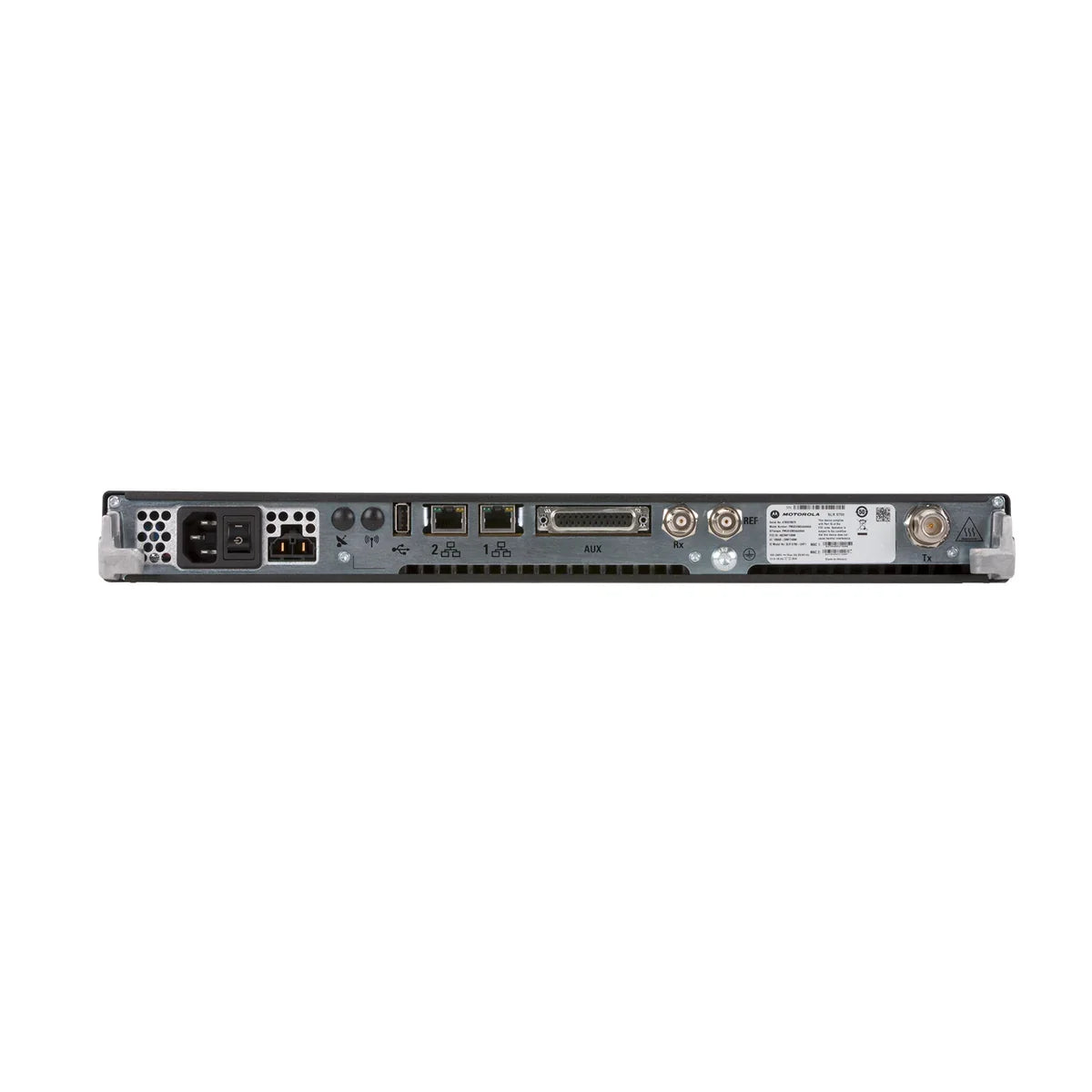

NO Connector Function(s) 1 C14 (IEC 1 60320) AC Power Inlet and Repeater Power Switch 2 Molex 42818 – 2 0212 DC Power Inlet and DC Charger Outlet 3 Option Dependent Future Option 1 4 Option Dependent Future Option 1 5 Type A Socket USB 6 RJ-45 – Jack Ethernet 1 7 RJ-45 – Jack Ethernet 2 8 DB25 - Female Rx Audio, Tx Audio, PTT, COR, Accessory Power, 1 PPS, and GPIO 9 BNC - Female Reciever RF 10 BNC - Female Frequency Reference Input 11 T30 TORX Screw Bonding ground connection 12 N-Type - Female Transmitter RF MOTOTRBO SLR 5000 SERIES
With excellent performance, high reliability and clever design in a small, slim unit, the SLR 5000 Series repeater is at the heart of a MOTOTRBO professional two-way radio system.
